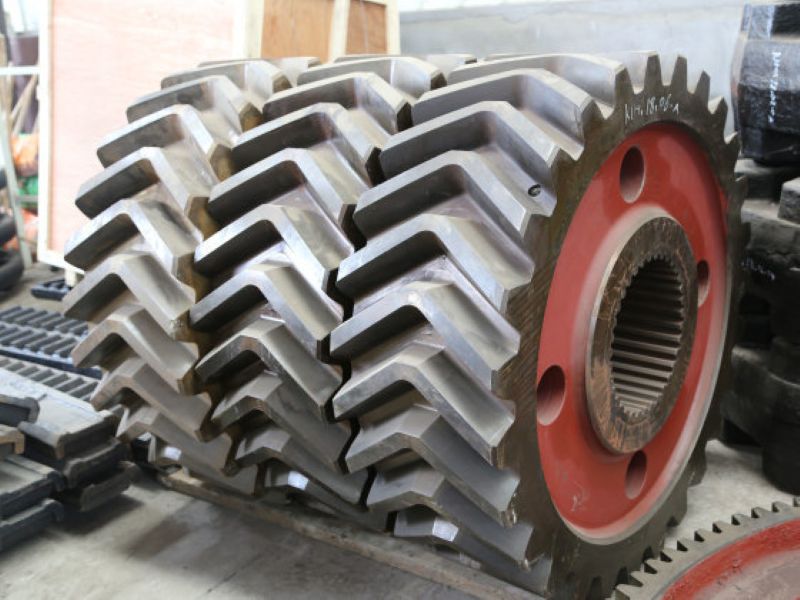

What Is a Herringbone Gear?
A herringbone gear is basically a double helical gear with the teeth on one side being left-handed and the other right-handed. Because the two tooth directions offset each other in axial force, the gear remains very quiet and stable even at high speed and heavy load. Double helical herringbone gears can deliver the following benefits as compared to single helical ones:
lower vibration.
less noise.
higher load-carrying capacity.
better stability in long-term operation.
We are capable of making different varieties of helical and herringbone gears. Besides this, we also produce large-diameter ring gears, pinions, and other heavy-duty transmission components for mining and industrial machinery.
Advantages of Our Herringbone Gear Castings:
Every purchase is accompanied by thorough inspection paperwork so that purchasers can have a clear view of product quality. The main advantages are:
Support for multiple international standards: DIN, GB, GOST, AISI.
Factory certified to ISO 9001.
Export paperwork available: Form E, Form A, CO.
Parameters of a Large Casting Herringbone Gear Wheel:
| Standard | DIN GB ISO JIS BA ANSI |
| Heat Treatment | Quenching and tempering, surface hardening, overall hardening, carburising and quenching, tempering, normalising, nitriding |
| Application | Widely used in various transmissions, speed changing, and rotating equipment |
Full test reports are available for each production batch:
Material composition.
Hardness test.
UT / MT inspection.
Dimensional check.
Mechanical performance tests.
Such quality traceability documentation helps in quality control and makes purchasing safer for buyers.
General Specifications of Large Casting Herringbone Gear Wheels:
Standards: DIN / GB / ISO / JIS / ANSIFirst layer of the carburized steel is quenched and tempered (heat treatment)Normalizing, nitriding, surface hardeningHeavy-duty transmission systems, speed reducers, large rotary equipment, and similar machinery are the main applications of this standard.
Production Capacity:
Machining diameter: 300 mm – 8000 mm.
Max single piece weight: 60 tons maximum (depending on material & design).
Order types: Single-piece heavy parts or batch production.
Lead time: 30–45 days, depending on complexity and size.
Export regions: Asia, Europe, Americas, Africa, Middle East, Oceania.
Service & Support:
Our goal is to be more than a mere parts provider—we strive to be partners in our customers’ mission of improving their equipment's reliability and reducing downtime.
Old part replication: We can recreate a part that is severely worn out by using its original shape.
Material traceability: Every raw material batch can be traced.
100% quality-checked: All gears are accompanied by full inspection reports.
Engineer-supported selection: Helps to decrease mismatch risk during installation.
Global export expertise: Compliant with customs and documentation requirements.
Shipping options: Sea, land, rail, or air freight.
Quick and clear quotes: Helps to shorten the communication process.
Applications:
Herringbone gears find their use mostly in heavy industrial equipment, like:
Mining crushers and screening lines.
Ball mills and rotary kilns.
Large gear reducers.
Steel mill and metallurgical equipment.
Cement production machinery.
Conveying and port handling systems.
Hoisting and travel mechanisms.
These machines are very heavy-duty, and can be considered as operating in severe conditions. To ensure stable performance for the long term, herringbone gears are used there.
FAQ:
Q1: What size herringbone gear can you make?
We work with diameters ranging from 300 mm to 8000 mm. Just let us know the kind of gear you need and we will come up with the best solution for you.
Q2: Can you manufacture a new one if I only have a sample that is worn or damaged?
Absolutely. We are able to measure it, recreate the geometry, and make a brand-new identical replacement.
Q3: In which countries are you allowed to deliver?
Our shipping capability spans the entire globe; that is to say, we deliver to Asia, Europe, the Americas, Africa, the Middle East, and Australia.
Why Customers Trust Us?
Our main goal is not only to produce high-quality gears, but also to provide the best service for your equipment, thus increasing its life with less breakdowns.
We don't leave anything to chance when it comes to quality: each gear is accompanied by a full set of inspection documents.
We have been intensely engaged in heavy industry metalworking for over two decades, particularly in the fields of mining, steel mills, and cement plants.
With a strong experience in international trades, we know what overseas buyers are looking for and we are ready to fulfill their needs.
There are several nice features of this model: Transparent pricing, quick response, and facilitating after-sales support.
